IGZO-LCD(LQ070M1SX01)モジュールのEDID

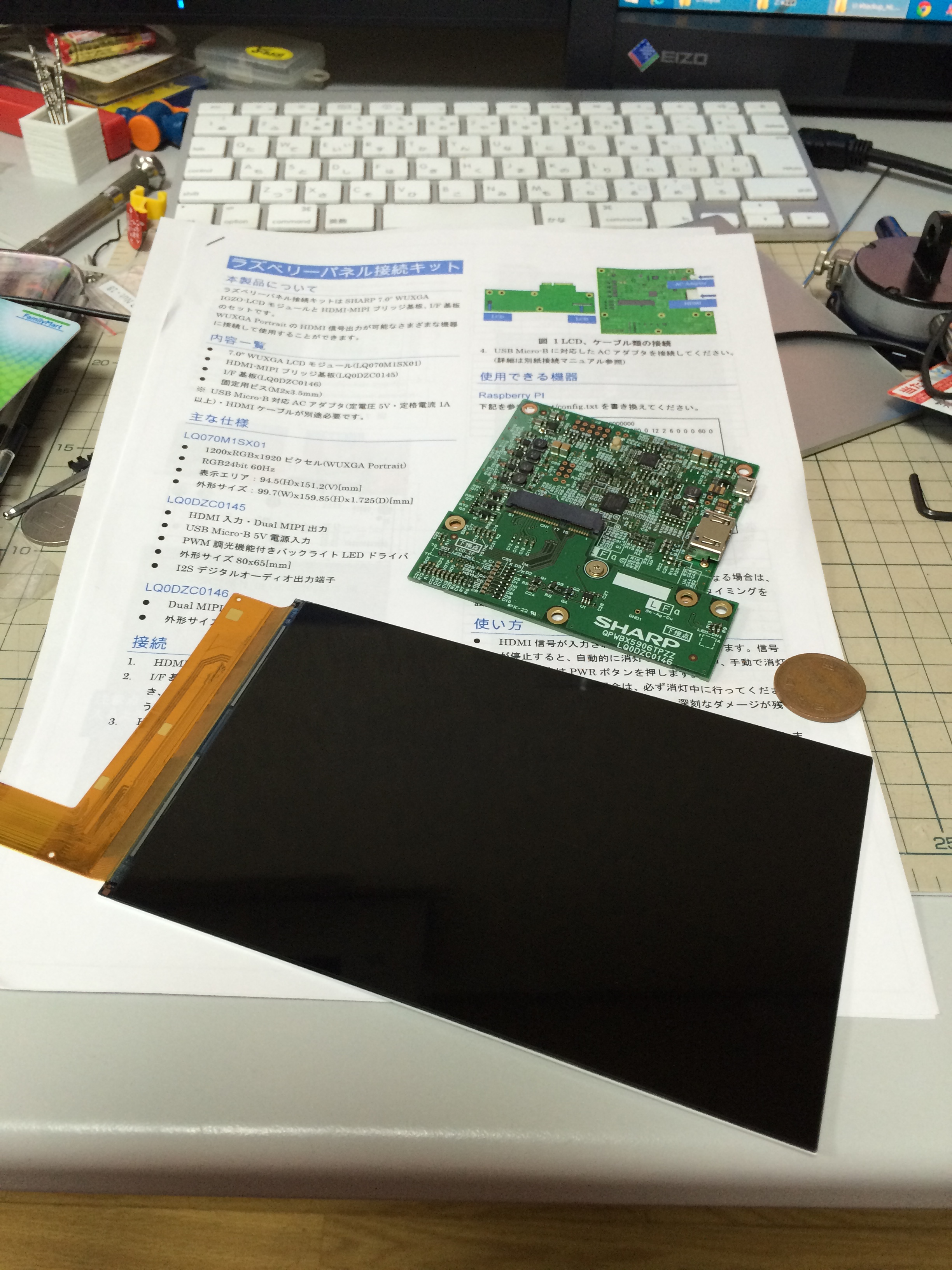

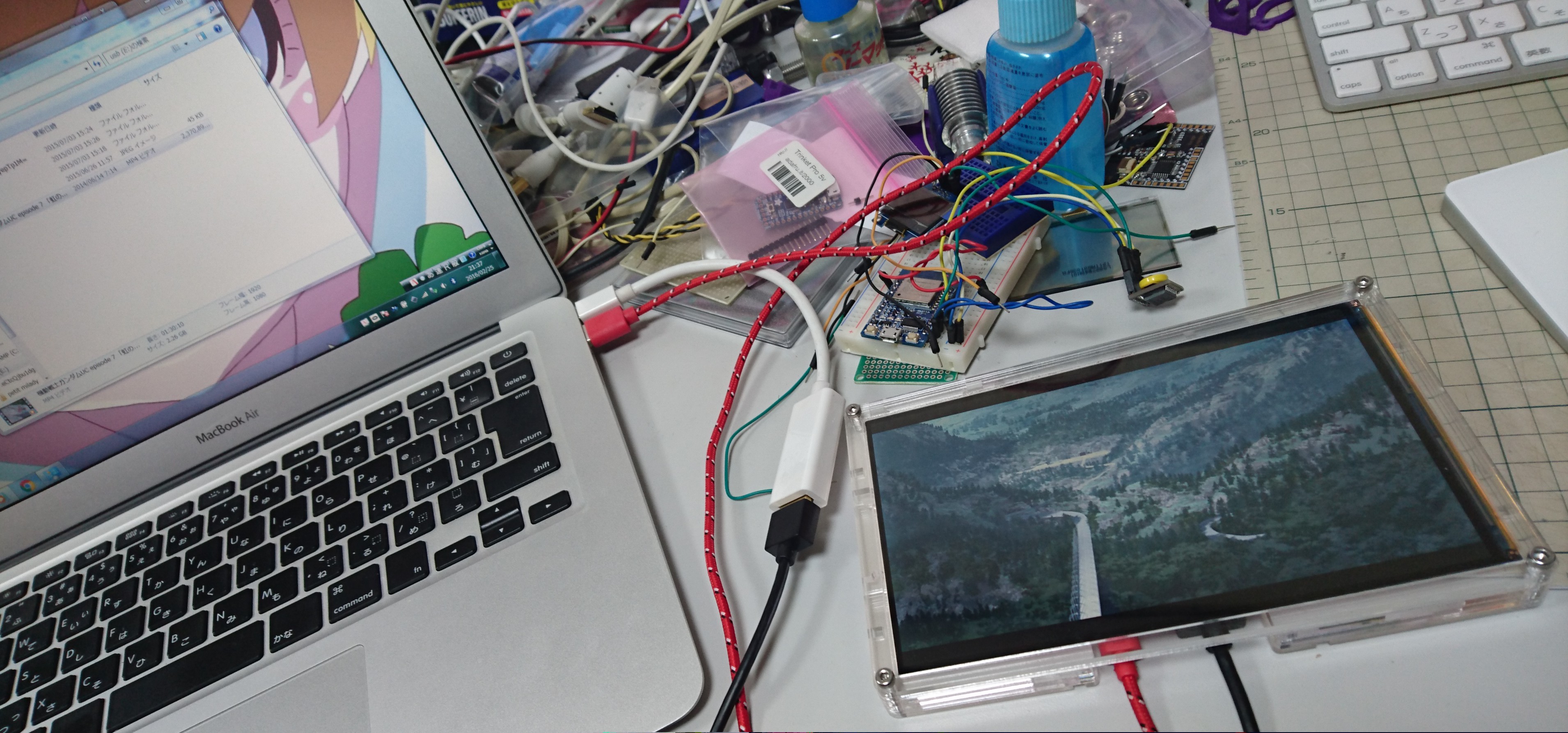

秋月さんでも売り出して久しい、IGZOのLCDですが、emerge+さんのIGZOパネルエンクロージャに入れてます。
この１６ｃｍ強のサイズを綺麗に３Dプリンタで出せなくて、、「あぁ！！」ってなって買いました。

そして、MBA2011にminiDisplayPort２HDMIで繋げると表示されない。。。
mac miniでは認識しないけど、ゴミ箱mac proでは認識する、、、 boot campでも認識する、、、

で、ゴミ箱mac proで「SwitchResX Version 4.5.3」でエクスポートしてみると、

EDID report generated by SwitchResX Version 4.5.3 (Intel - 64-bit) for display LQ070M1SX01

-----------------------------------------------------
------------------- RAW DATA ------------------------
-----------------------------------------------------
      0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
-----------------------------------------------------
0  | 00 FF FF FF FF FF FF 00 4D 10 59 14 00 00 00 00
1  | 1F 19 01 04 A2 09 0F 78 02 DE 50 A3 54 4C 99 26
2  | 0F 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01
3  | 01 01 01 01 01 01 D7 3F B0 CC 40 80 14 70 A4 08
4  | C2 00 5F 97 00 00 00 18 00 00 00 10 00 00 00 00
5  | 00 00 00 00 00 00 00 00 00 00 00 00 00 10 00 00
6  | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 FC
7  | 00 4C 51 30 37 30 4D 31 53 58 30 31 0A 20 01 81

-----------------------------------------------------
      0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
-----------------------------------------------------
0  | 02 03 0C 40 23 09 02 07 83 01 00 00 D7 3F B0 CC
1  | 40 80 14 70 A4 08 C2 00 5F 97 00 00 00 18 00 00
2  | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
3  | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
4  | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
5  | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
6  | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
7  | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 A4

-----------------------------------------------------
 < 00FFFFFF FFFFFF00 4D105914 00000000 1F190104 A2090F78 02DE50A3 544C9926 0F505400 00000101 01010101 01010101 01010101 0101D73F B0CC4080 1470A408 C2005F97 00000018 00000010 00000000 00000000 00000000 00000000 00100000 00000000 00000000 00000000 000000FC 004C5130 37304D31 53583031 0A200181 02030C40 23090207 83010000 D73FB0CC 40801470 A408C200 5F970000 00180000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 000000A4 >

-----------------------------------------------------
 { 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x4D, 0x10, 0x59, 0x14, 0x00, 0x00, 0x00, 0x00, 0x1F, 0x19, 0x01, 0x04, 0xA2, 0x09, 0x0F, 0x78, 0x02, 0xDE, 0x50, 0xA3, 0x54, 0x4C, 0x99, 0x26, 0x0F, 0x50, 0x54, 0x00, 0x00, 0x00, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0xD7, 0x3F, 0xB0, 0xCC, 0x40, 0x80, 0x14, 0x70, 0xA4, 0x08, 0xC2, 0x00, 0x5F, 0x97, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFC, 0x00, 0x4C, 0x51, 0x30, 0x37, 0x30, 0x4D, 0x31, 0x53, 0x58, 0x30, 0x31, 0x0A, 0x20, 0x01, 0x81, 0x02, 0x03, 0x0C, 0x40, 0x23, 0x09, 0x02, 0x07, 0x83, 0x01, 0x00, 0x00, 0xD7, 0x3F, 0xB0, 0xCC, 0x40, 0x80, 0x14, 0x70, 0xA4, 0x08, 0xC2, 0x00, 0x5F, 0x97, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xA4	}

-----------------------------------------------------
	Valid EDID block #0: checksum ok
	Valid EDID block #1: checksum ok

-----------------------------------------------------
------------------- MAIN EDID BLOCK -----------------
-----------------------------------------------------

	EDID Version........1.4
	Manufacturer........SHP (4D10)
	Product ID..........5209 (1459)
	Serial Number.......00000000

	Manufactured........Week 31 of year 2015
	Max H Size..........9 cm
	Max V Size..........15 cm
	Gamma...............2.20

Display Supported Features:
---------------------------


Display type:
-------------
	RGB 4:4:4 Color Encoding Format
	Display is non continuous frequency
	Default color space is not sRGB standard
	Preferred timing mode includes Native Pixel Format


Input signal & sync:
--------------------
Digital Input
	8 Bits per Primary Color
	HDMI-a interface


Color info:
-----------
Red x = 0.640  Green x = 0.300  Blue x = 0.149  White x = 0.312
Red y = 0.329  Green y = 0.600  Blue y = 0.060  White y = 0.328

Established Timings:
--------------------

Manufacturer Reserved Timings:
------------------------------

Standard Timing Identification:
-------------------------------

Monitor Description blocks:
---------------------------
	Descriptor #0 - Timing definition:
	Mode = 1200 x 1920 @ 60.002Hz
		Pixel Clock............. 163.43 MHz		Non-Interlaced

		                        Horizontal		Vertical
		Active.................. 1200 pixels		1920 lines
		Front Porch.............  164 pixels		  12 lines
		Sync Width..............    8 pixels		   2 lines
		Back Porch..............   32 pixels		   6 lines
		Blanking................  204 pixels		  20 lines
		Total................... 1404 pixels		1940 lines
		Scan Rate............... 116.403 kHz		 60.002 Hz

		Image Size..............   95 mm		 151 mm
		Border..................    0 pixels		   0 lines

			Sync: Digital separate with
				* Negative vertical polarity
				* Negative horizontal polarity

	Descriptor #1 - Empty descriptor

	Descriptor #2 - Empty descriptor

	Descriptor #3 - Monitor name:
			LQ070M1SX01


-----------------------------------------------------
------------ EXTENSION EDID BLOCK   1 ---------------
-----------------------------------------------------

CEA-EXT: CEA 861 Series Extension:
----------------------------------
	Revision:...........................3
	First DTD block at offset...........8
	Display Supports:
		Basic audio

Data Block Collection #1 - Type 1
	Audio Type Block
		Supported format:	Linear Pulse Code Modulation (LPCM), on 2 channels
		Supported freq:		44.1kHz
		Supported sample sizes:	16 bit, 20 bit, 24 bit

Data Block Collection #2 - Type 4
	Speaker allocation data block
		Front Left / Front Right
		Front Left High / Front Right High

Detailed Timing Blocks - 0 is native
	Detailed Timing Block #1 - Timing definition:
	Mode = 1200 x 1920 @ 60.002Hz
		Pixel Clock............. 163.43 MHz		Non-Interlaced

		                        Horizontal		Vertical
		Active.................. 1200 pixels		1920 lines
		Front Porch.............  164 pixels		  12 lines
		Sync Width..............    8 pixels		   2 lines
		Back Porch..............   32 pixels		   6 lines
		Blanking................  204 pixels		  20 lines
		Total................... 1404 pixels		1940 lines
		Scan Rate............... 116.403 kHz		 60.002 Hz

		Image Size..............   95 mm		 151 mm
		Border..................    0 pixels		   0 lines

			Sync: Digital separate with
				* Negative vertical polarity
				* Negative horizontal polarity

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

EDID report generated by SwitchResX Version 4.5.3 (Intel - 64-bit) for display LQ070M1SX01

-----------------------------------------------------

------------------- RAW DATA ------------------------

-----------------------------------------------------

0 1 2 3 4 5 6 7 8 9 A B C D E F

-----------------------------------------------------

0 | 00 FF FF FF FF FF FF 00 4D 10 59 14 00 00 00 00

1 | 1F 19 01 04 A2 09 0F 78 02 DE 50 A3 54 4C 99 26

2 | 0F 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01

3 | 01 01 01 01 01 01 D7 3F B0 CC 40 80 14 70 A4 08

4 | C2 00 5F 97 00 00 00 18 00 00 00 10 00 00 00 00

5 | 00 00 00 00 00 00 00 00 00 00 00 00 00 10 00 00

6 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 FC

7 | 00 4C 51 30 37 30 4D 31 53 58 30 31 0A 20 01 81

-----------------------------------------------------

0 1 2 3 4 5 6 7 8 9 A B C D E F

-----------------------------------------------------

0 | 02 03 0C 40 23 09 02 07 83 01 00 00 D7 3F B0 CC

1 | 40 80 14 70 A4 08 C2 00 5F 97 00 00 00 18 00 00

2 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

3 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

4 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

5 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

6 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

7 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 A4

-----------------------------------------------------

< 00FFFFFF FFFFFF00 4D105914 00000000 1F190104 A2090F78 02DE50A3 544C9926 0F505400 00000101 01010101 01010101 01010101 0101D73F B0CC4080 1470A408 C2005F97 00000018 00000010 00000000 00000000 00000000 00000000 00100000 00000000 00000000 00000000 000000FC 004C5130 37304D31 53583031 0A200181 02030C40 23090207 83010000 D73FB0CC 40801470 A408C200 5F970000 00180000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 000000A4 >

-----------------------------------------------------

{ 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x4D, 0x10, 0x59, 0x14, 0x00, 0x00, 0x00, 0x00, 0x1F, 0x19, 0x01, 0x04, 0xA2, 0x09, 0x0F, 0x78, 0x02, 0xDE, 0x50, 0xA3, 0x54, 0x4C, 0x99, 0x26, 0x0F, 0x50, 0x54, 0x00, 0x00, 0x00, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0xD7, 0x3F, 0xB0, 0xCC, 0x40, 0x80, 0x14, 0x70, 0xA4, 0x08, 0xC2, 0x00, 0x5F, 0x97, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFC, 0x00, 0x4C, 0x51, 0x30, 0x37, 0x30, 0x4D, 0x31, 0x53, 0x58, 0x30, 0x31, 0x0A, 0x20, 0x01, 0x81, 0x02, 0x03, 0x0C, 0x40, 0x23, 0x09, 0x02, 0x07, 0x83, 0x01, 0x00, 0x00, 0xD7, 0x3F, 0xB0, 0xCC, 0x40, 0x80, 0x14, 0x70, 0xA4, 0x08, 0xC2, 0x00, 0x5F, 0x97, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xA4 }

-----------------------------------------------------

Valid EDID block #0: checksum ok

Valid EDID block #1: checksum ok

-----------------------------------------------------

------------------- MAIN EDID BLOCK -----------------

-----------------------------------------------------

EDID Version........1.4

Manufacturer........SHP (4D10)

Product ID..........5209 (1459)

Serial Number.......00000000

Manufactured........Week 31 of year 2015

Max H Size..........9 cm

Max V Size..........15 cm

Gamma...............2.20

Display Supported Features:

---------------------------

Display type:

-------------

RGB 4:4:4 Color Encoding Format

Display is non continuous frequency

Default color space is not sRGB standard

Preferred timing mode includes Native Pixel Format

Input signal & sync:

--------------------

Digital Input

8 Bits per Primary Color

HDMI-a interface

Color info:

-----------

Red x = 0.640 Green x = 0.300 Blue x = 0.149 White x = 0.312

Red y = 0.329 Green y = 0.600 Blue y = 0.060 White y = 0.328

Established Timings:

--------------------

Manufacturer Reserved Timings:

------------------------------

Standard Timing Identification:

-------------------------------

Monitor Description blocks:

---------------------------

Descriptor #0 - Timing definition:

Mode = 1200 x 1920 @ 60.002Hz

Pixel Clock............. 163.43 MHz Non-Interlaced

Horizontal Vertical

Active.................. 1200 pixels 1920 lines

Front Porch............. 164 pixels 12 lines

Sync Width.............. 8 pixels 2 lines

Back Porch.............. 32 pixels 6 lines

Blanking................ 204 pixels 20 lines

Total................... 1404 pixels 1940 lines

Scan Rate............... 116.403 kHz 60.002 Hz

Image Size.............. 95 mm 151 mm

Border.................. 0 pixels 0 lines

Sync: Digital separate with

* Negative vertical polarity

* Negative horizontal polarity

Descriptor #1 - Empty descriptor

Descriptor #2 - Empty descriptor

Descriptor #3 - Monitor name:

LQ070M1SX01

-----------------------------------------------------

------------ EXTENSION EDID BLOCK 1 ---------------

-----------------------------------------------------

CEA-EXT: CEA 861 Series Extension:

----------------------------------

Revision:...........................3

First DTD block at offset...........8

Display Supports:

Basic audio

Data Block Collection #1 - Type 1

Audio Type Block

Supported format: Linear Pulse Code Modulation (LPCM), on 2 channels

Supported freq: 44.1kHz

Supported sample sizes: 16 bit, 20 bit, 24 bit

Data Block Collection #2 - Type 4

Speaker allocation data block

Front Left / Front Right

Front Left High / Front Right High

Detailed Timing Blocks - 0 is native

Detailed Timing Block #1 - Timing definition:

Mode = 1200 x 1920 @ 60.002Hz

Pixel Clock............. 163.43 MHz Non-Interlaced

Horizontal Vertical

Active.................. 1200 pixels 1920 lines

Front Porch............. 164 pixels 12 lines

Sync Width.............. 8 pixels 2 lines

Back Porch.............. 32 pixels 6 lines

Blanking................ 204 pixels 20 lines

Total................... 1404 pixels 1940 lines

Scan Rate............... 116.403 kHz 60.002 Hz

Image Size.............. 95 mm 151 mm

Border.................. 0 pixels 0 lines

Sync: Digital separate with

* Negative vertical polarity

* Negative horizontal polarity

EDID未対応な話だった気がするけど、、、読めてるぽい。。。
もう少し調べてみっか。。。

ESP8826 次はi2cでRTC

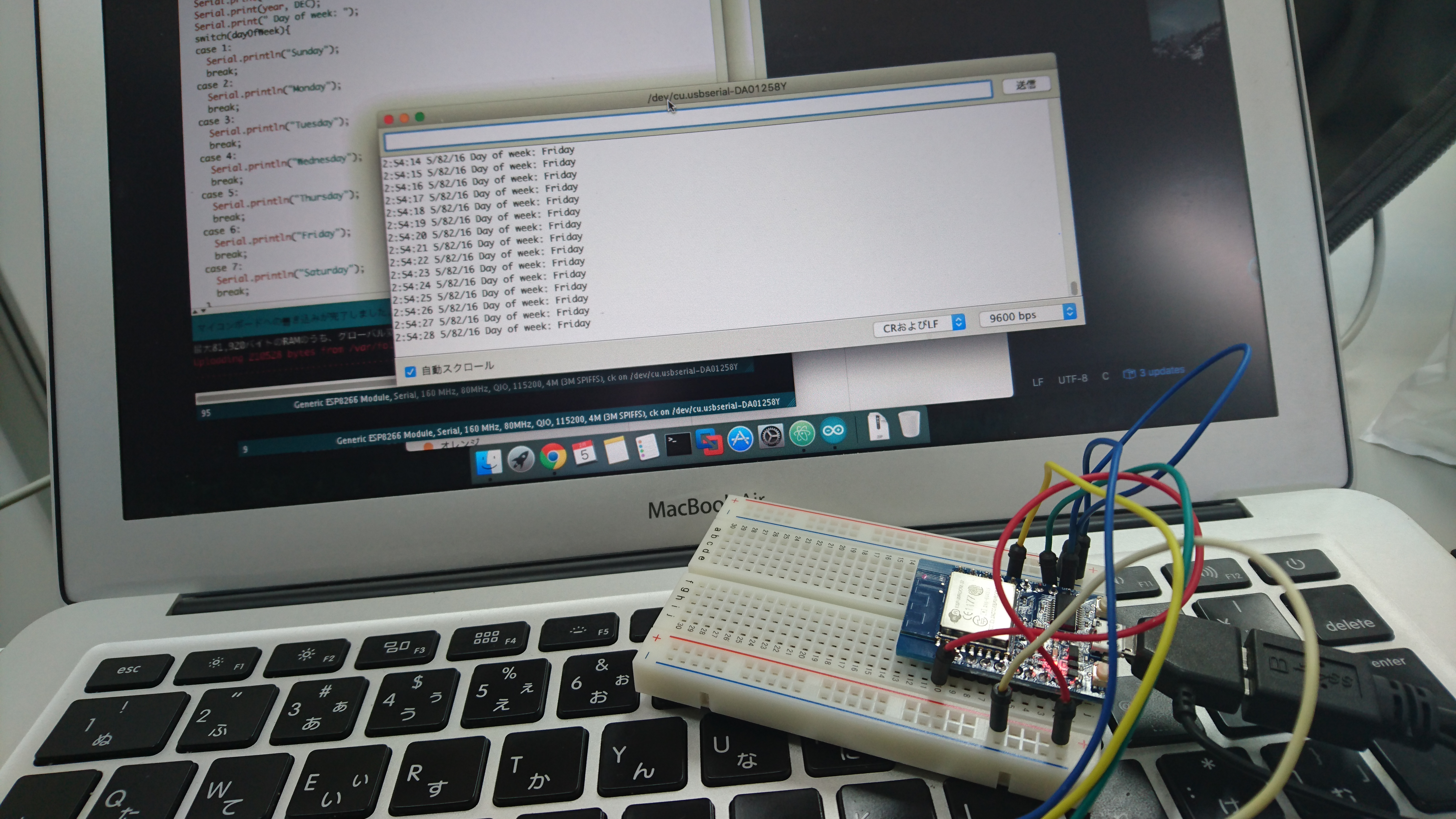

続いては、i2cでRTCとのお話してみる。

使うのは、ESP-WROOM-02開発ボードとDS3231のRTC（ラズパイ用に入手していたやつ）

ESP8266 にリアルタイムクロック DS3231 を接続する

を見ながら、配線して

Tutorial – Using DS1307 and DS3231 Real-time Clock Modules with Arduino

のサンプルを実行したら取れました。

※最初にRTCを初期化していないので、値は正しくはないですがちゃんと時間を刻んでいるのでOKでしょう。

ESP8266 はじめました。

かなり前に着弾はしていたが、積み基板と化していたESP8266を引っ張り出してきました。

まず、環境構築。
Macpro2013はreprapのコード用にArduinoIDEが1.0.5なので、MBA2011に環境構築。

WROOM 単体に Arduino スケッチで Wi-Fi ストリーミング

を見ながら、ターゲットにESP8266を追加。

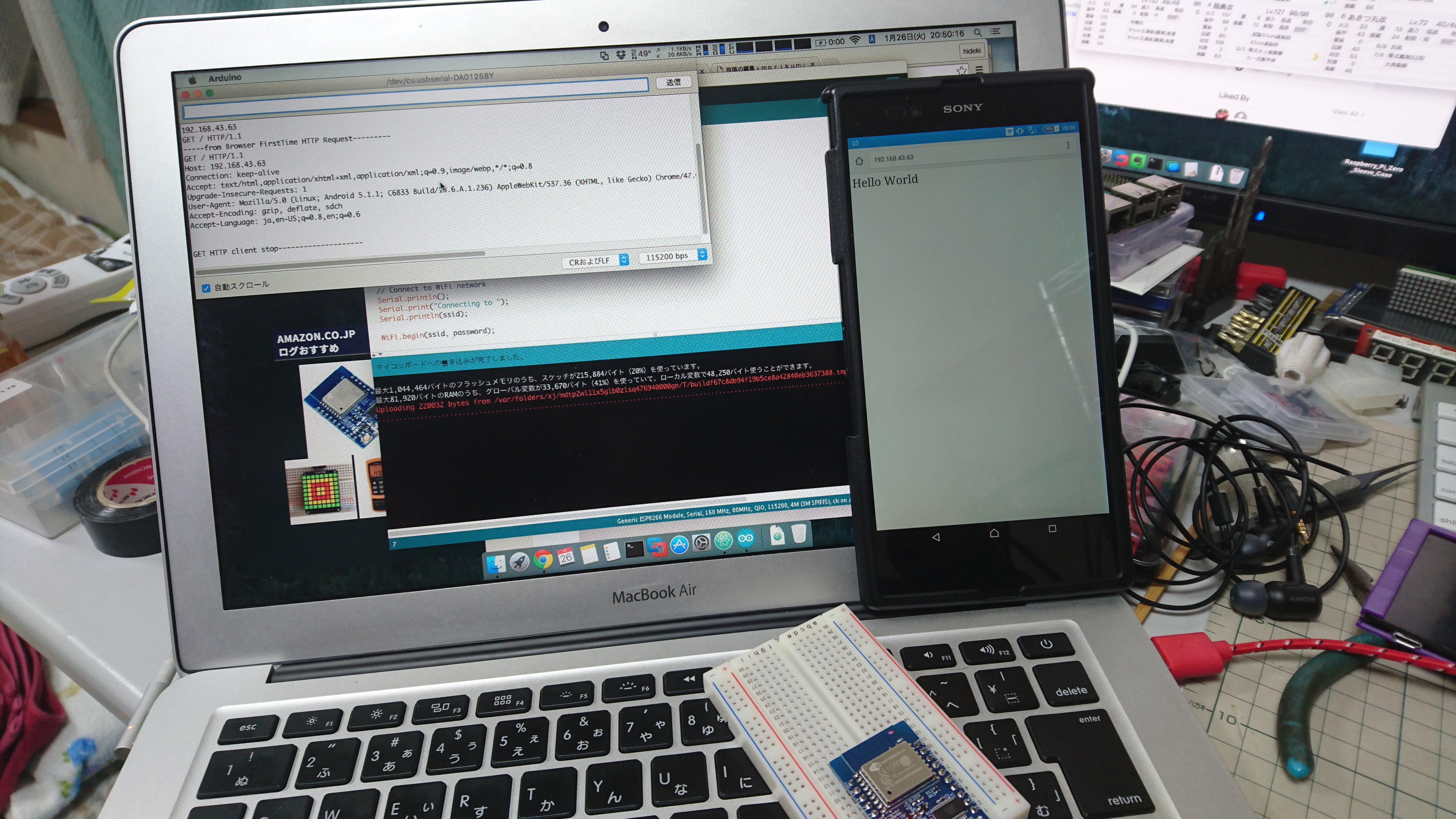

Xperia Z Ultraのテザリングして　URLにIPアドレス打ったら表示された。

簡単すぎる。。。

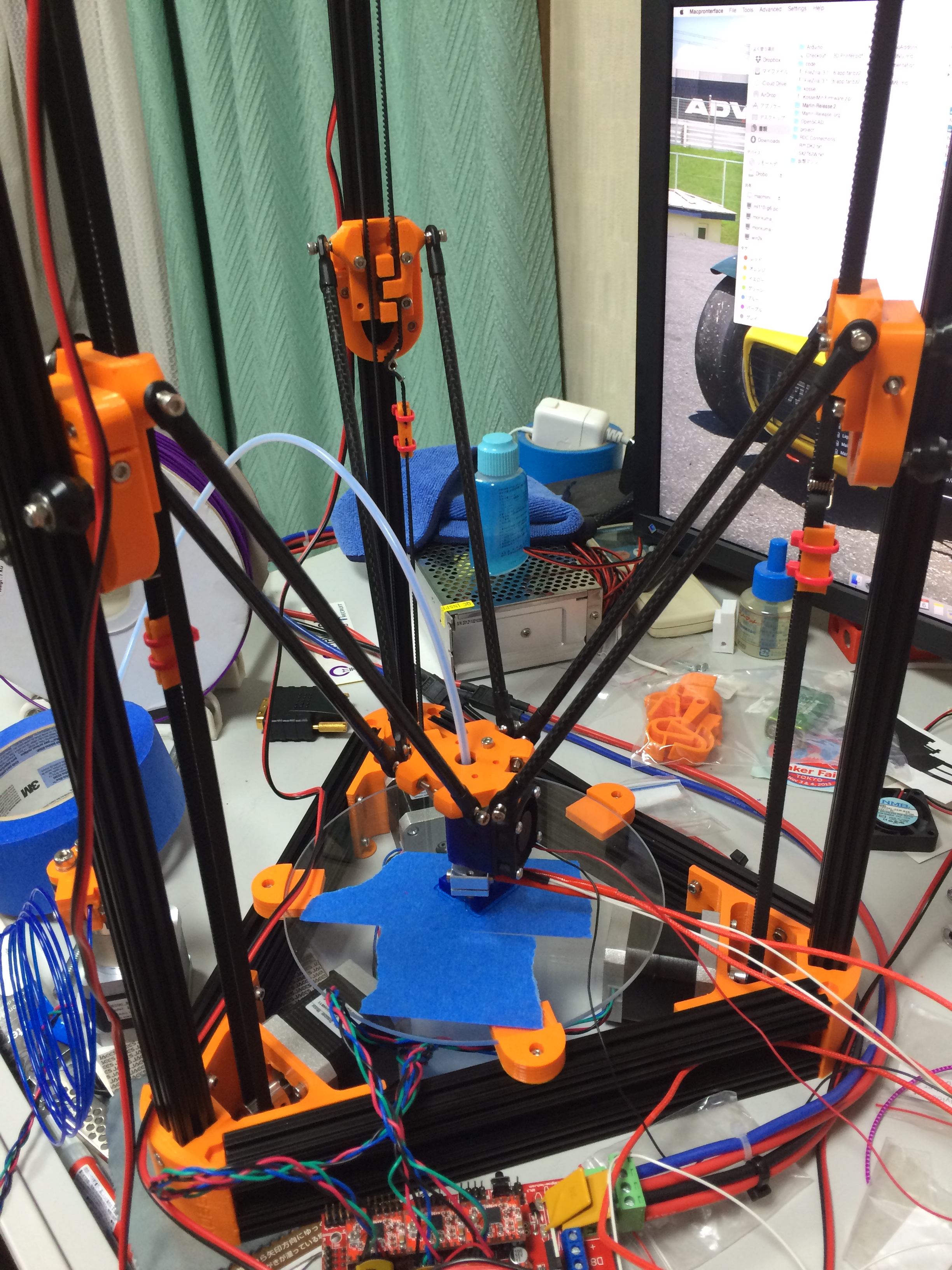

デルタ型のKossel Miniがやってきたので設定　その２

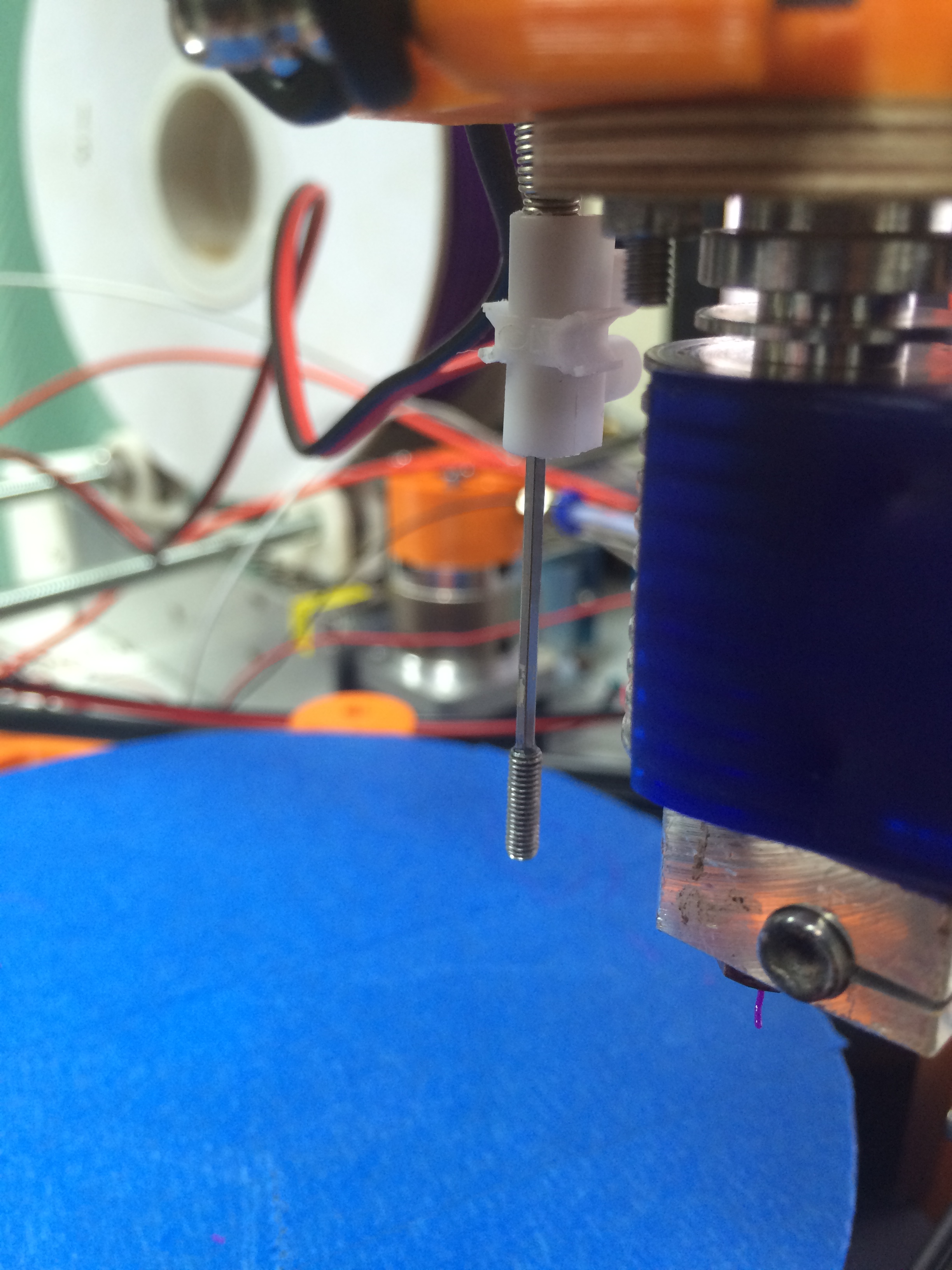

さて、、放置していたZ軸probeを使ってみる。

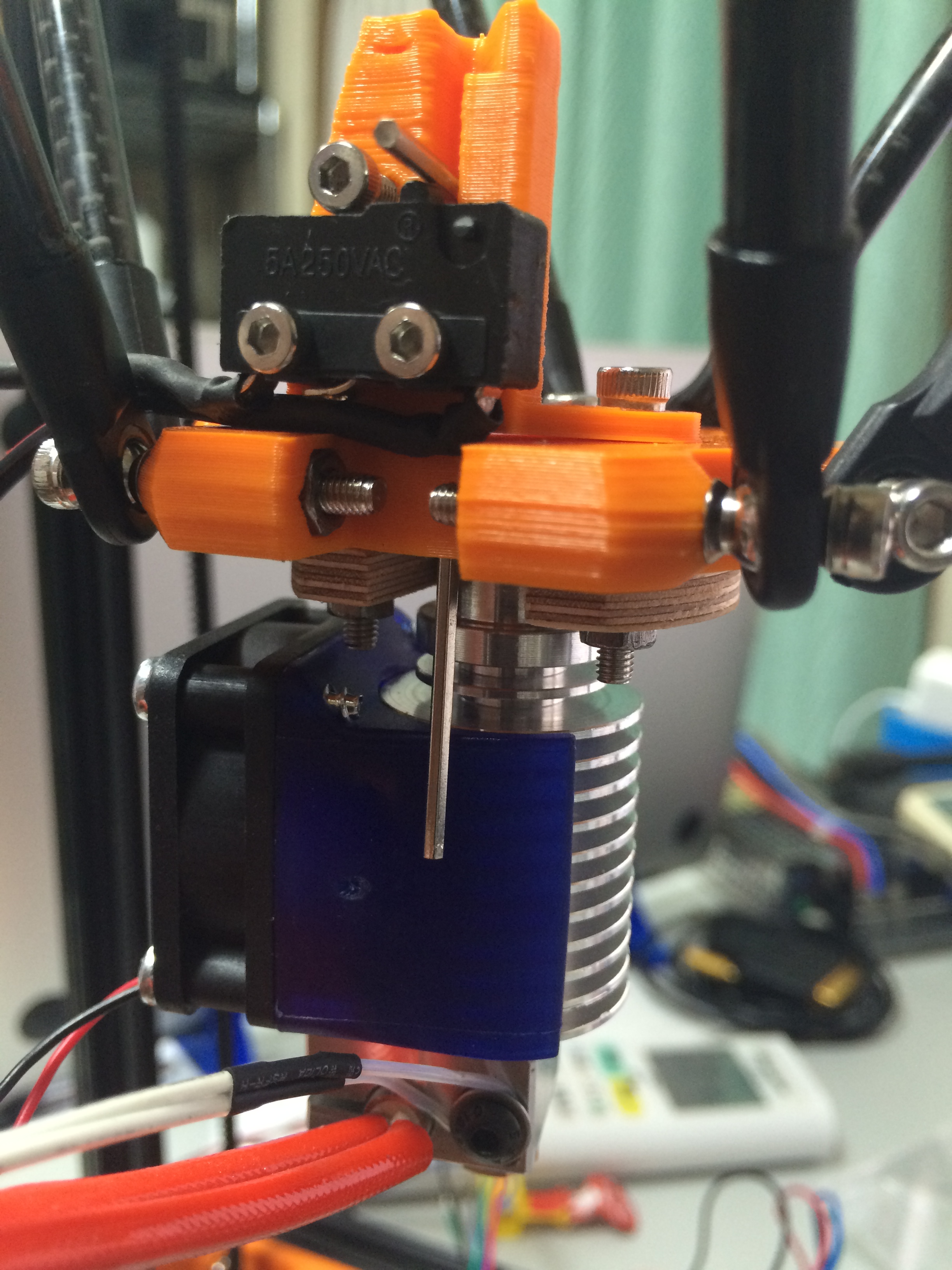

E3DV6を使うと、最初に付いてきたprobe台を使うとヒートシンクに干渉する。

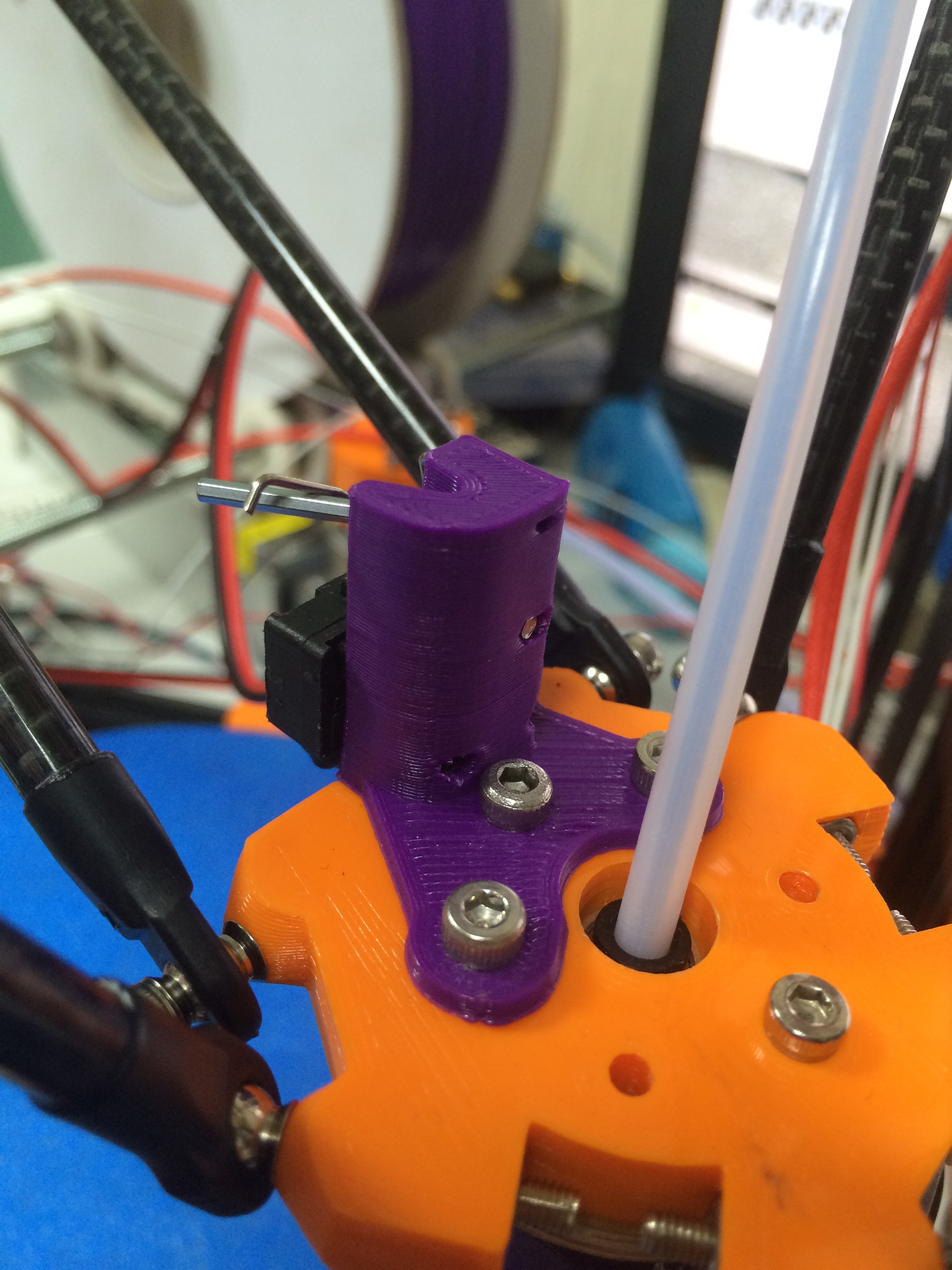

kosselでも何とか形になる出力はできるので、Mini Kossel Retractable Auto Bed Leveling Probe (for use with larger hotends)を出力。

近くのホームセンターやアストロプロダクト（厚木）に行ったけど、コストパフォーマンスの良い1.5mmのヘキサレンチはなかったのでカインズホームに行ってみたら有ったのでそれにしました。

帰って合わせて観たのですが少し短かったので1.5mmの長いイモねじを接着剤で固定。

次に最初に入れたFW（Marlin)の最新をDLして

/Marlin-Development/Marlin/example_configurations/delta/kossel_mini

1	/Marlin-Development/Marlin/example_configurations/delta/kossel_mini

のファイルを上書きしてましたが、まずは購入したサイトにあるFWに入れ替えました。

しかしG29コマンドを実行すると、訳の分からない動きをして。。。。ググった動画とはは全然違う動き。。。

３日間の試行錯誤のすえ解ったことは、

Z_MIN_ENDSTOP_INVERTINGが逆

// The pullups are needed if you directly connect a mechanical endswitch between the signal and ground pins.
const bool X_MIN_ENDSTOP_INVERTING = false; // set to true to invert the logic of the endstop.
const bool Y_MIN_ENDSTOP_INVERTING = false; // set to true to invert the logic of the endstop.
const bool Z_MIN_ENDSTOP_INVERTING = true; // set to true to invert the logic of the endstop.
const bool X_MAX_ENDSTOP_INVERTING = false; // set to true to invert the logic of the endstop.
const bool Y_MAX_ENDSTOP_INVERTING = false; // set to true to invert the logic of the endstop.
const bool Z_MAX_ENDSTOP_INVERTING = false; // set to true to invert the logic of the endstop.

// The pullups are needed if you directly connect a mechanical endswitch between the signal and ground pins.

const bool X_MIN_ENDSTOP_INVERTING = false; // set to true to invert the logic of the endstop.

const bool Y_MIN_ENDSTOP_INVERTING = false; // set to true to invert the logic of the endstop.

const bool Z_MIN_ENDSTOP_INVERTING = true; // set to true to invert the logic of the endstop.

const bool X_MAX_ENDSTOP_INVERTING = false; // set to true to invert the logic of the endstop.

const bool Y_MAX_ENDSTOP_INVERTING = false; // set to true to invert the logic of the endstop.

const bool Z_MAX_ENDSTOP_INVERTING = false; // set to true to invert the logic of the endstop.

付いてきたmicroスイッチはnoには繋がってな無かった。

G29コマンドのZ軸probeの有効化/無効化のモーションではうちの子は対応できない

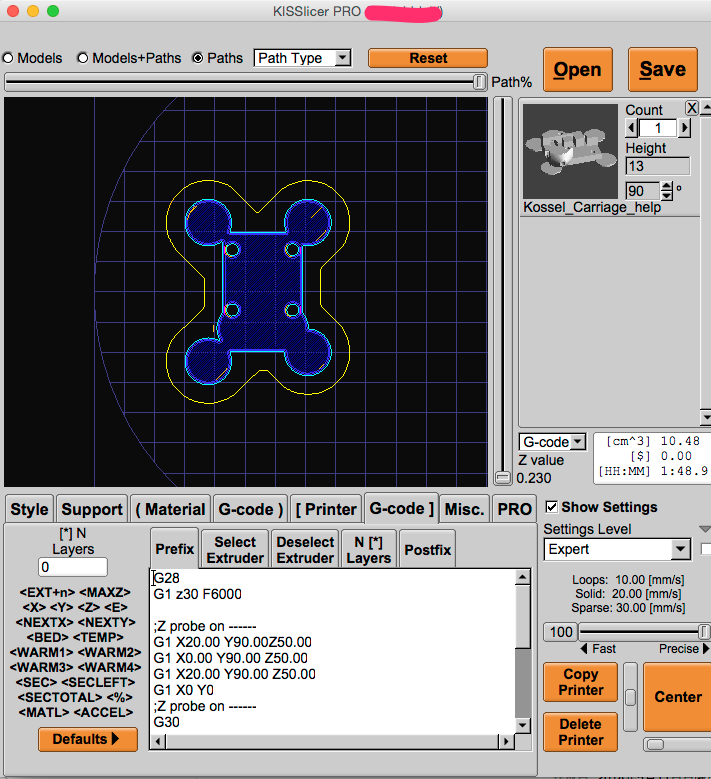

G29で使ってるモーションを修正する手もあったが、なにか弄るたびにFWの書き換えは面倒なので新しくG30コマンドを追加してBed Auto Levelingのみをするようにしました。

    case 29: // G29 Calibrate print surface with automatic Z probe.
      saved_feedrate = feedrate;
      saved_feedmultiply = feedmultiply;
      feedmultiply = 100;

      deploy_z_probe();
      calibrate_print_surface(z_probe_offset[Z_AXIS] +
	(code_seen(axis_codes[Z_AXIS]) ? code_value() : 0.0));
      retract_z_probe();

      feedrate = saved_feedrate;
      feedmultiply = saved_feedmultiply;
      previous_millis_cmd = millis();
      endstops_hit_on_purpose();
      break;

     case 30: // G29 Calibrate print surface with automatic Z probe.
        saved_feedrate = feedrate;
        saved_feedmultiply = feedmultiply;
        feedmultiply = 100;

        calibrate_print_surface(z_probe_offset[Z_AXIS] + (code_seen(axis_codes[Z_AXIS]) ? code_value() : 0.0));

        feedrate = saved_feedrate;
        feedmultiply = saved_feedmultiply;
        previous_millis_cmd = millis();
        endstops_hit_on_purpose();
        break;

1152

1153

1154

1155

1156

1157

1158

1159

1160

1161

1162

1163

1164

1165

1166

1167

1168

1169

1170

1171

1172

1173

1174

1175

1176

1177

1178

1179

case 29: // G29 Calibrate print surface with automatic Z probe.

saved_feedrate = feedrate;

saved_feedmultiply = feedmultiply;

feedmultiply = 100;

deploy_z_probe();

calibrate_print_surface(z_probe_offset[Z_AXIS] +

(code_seen(axis_codes[Z_AXIS]) ? code_value() : 0.0));

retract_z_probe();

feedrate = saved_feedrate;

feedmultiply = saved_feedmultiply;

previous_millis_cmd = millis();

endstops_hit_on_purpose();

break;

case 30: // G29 Calibrate print surface with automatic Z probe.

saved_feedrate = feedrate;

saved_feedmultiply = feedmultiply;

feedmultiply = 100;

calibrate_print_surface(z_probe_offset[Z_AXIS] + (code_seen(axis_codes[Z_AXIS]) ? code_value() : 0.0));

feedrate = saved_feedrate;

feedmultiply = saved_feedmultiply;

previous_millis_cmd = millis();

endstops_hit_on_purpose();

break;

29のケース処理をコピペしてdeploy_z_probe と　retract_z_probe　を削除。

そして、KISSlicerのG-code − Prefix にprobeの有効化/無効化のモーションとG30のコマンドを追加。

G28
G1 z30 F6000

;Z probe on ------
G1 X20.00 Y90.00Z50.00
G1 X0.00 Y90.00 Z50.00
G1 X20.00 Y90.00 Z50.00
G1 X0 Y0
;Z probe on ------
G30

G1 Z30 F6000
G1 X-31 Y60 Z30 F6000
G1 Z12 F600
G1 Z50 F6000

; go HOTEND Up Wait position
G1 X0 Y-80
;M109 S<TEMP>
; go HOTEND Up Wait position

G28

G1 z30 F6000

;Z probe on ------

G1 X20.00 Y90.00Z50.00

G1 X0.00 Y90.00 Z50.00

G1 X20.00 Y90.00 Z50.00

G1 X0 Y0

;Z probe on ------

G30

G1 Z30 F6000

G1 X-31 Y60 Z30 F6000

G1 Z12 F600

G1 Z50 F6000

; go HOTEND Up Wait position

G1 X0 Y-80

;M109 S<TEMP>

; go HOTEND Up Wait position

G30コマンドを実行したときに出る値を観ると　最大2.5mmも違う。

0.730 0.730 0.730 0.970 1.210 1.210 1.210
0.300 0.300 0.580 0.870 1.220 1.540 1.540
-0.230 0.100 0.420 0.780 1.080 1.510 1.870
-0.470 -0.130 0.220 0.580 0.980 1.400 1.890
-0.700 -0.330 0.070 0.440 0.880 1.410 1.810
-0.500 -0.500 -0.150 0.320 0.760 1.280 1.280
0.370 0.370 0.370 0.290 1.100 1.100 1.100

0.730 0.730 0.730 0.970 1.210 1.210 1.210

0.300 0.300 0.580 0.870 1.220 1.540 1.540

-0.230 0.100 0.420 0.780 1.080 1.510 1.870

-0.470 -0.130 0.220 0.580 0.980 1.400 1.890

-0.700 -0.330 0.070 0.440 0.880 1.410 1.810

-0.500 -0.500 -0.150 0.320 0.760 1.280 1.280

0.370 0.370 0.370 0.290 1.100 1.100 1.100

Bedの高さ調整をできる機構を入れるかな。。。。

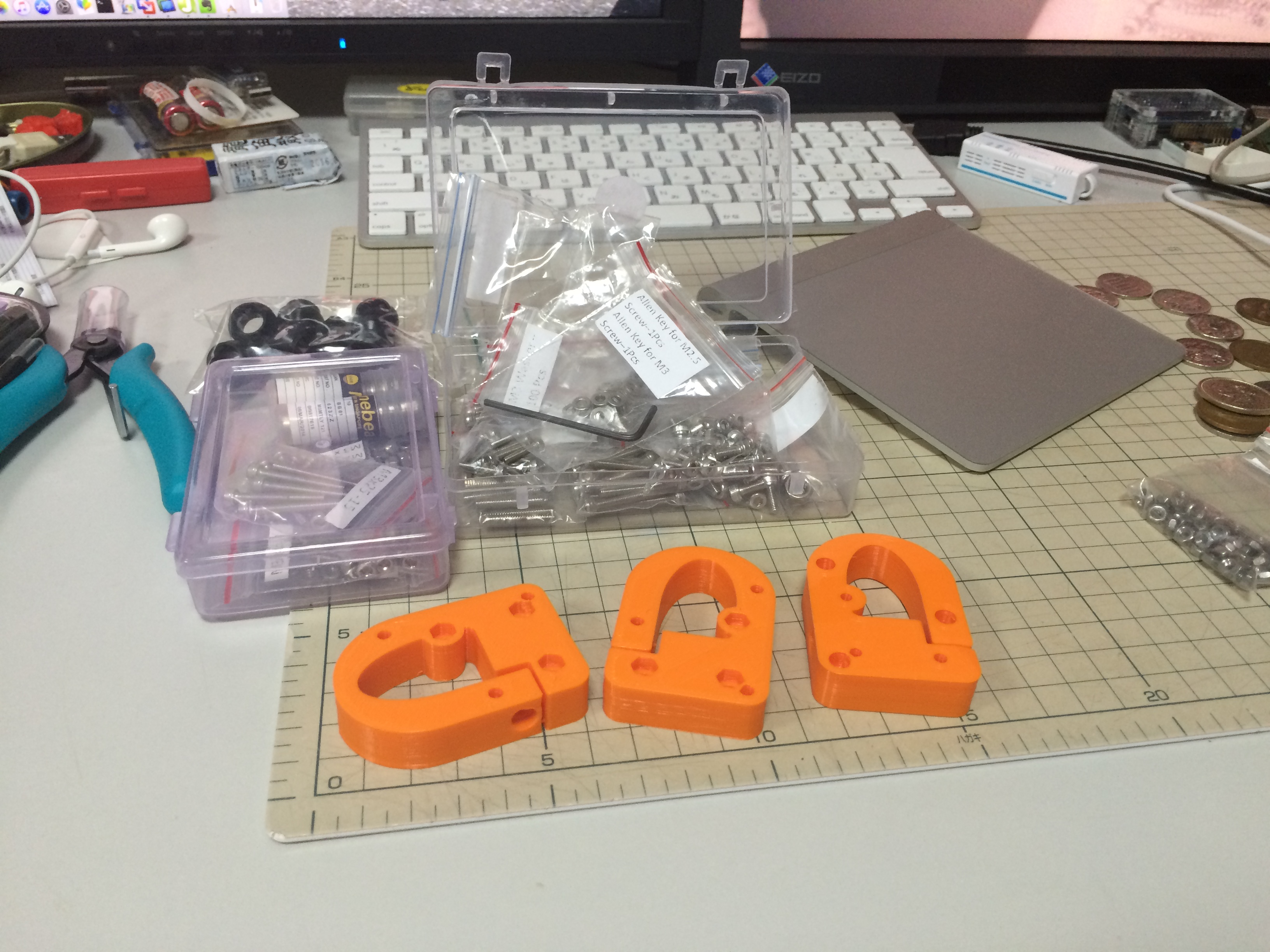

デルタ型のKossel Miniがやってきたので設定　その１

Z軸probeはとりあえず置いておいて配線して出力準備っ。

続きを読む →

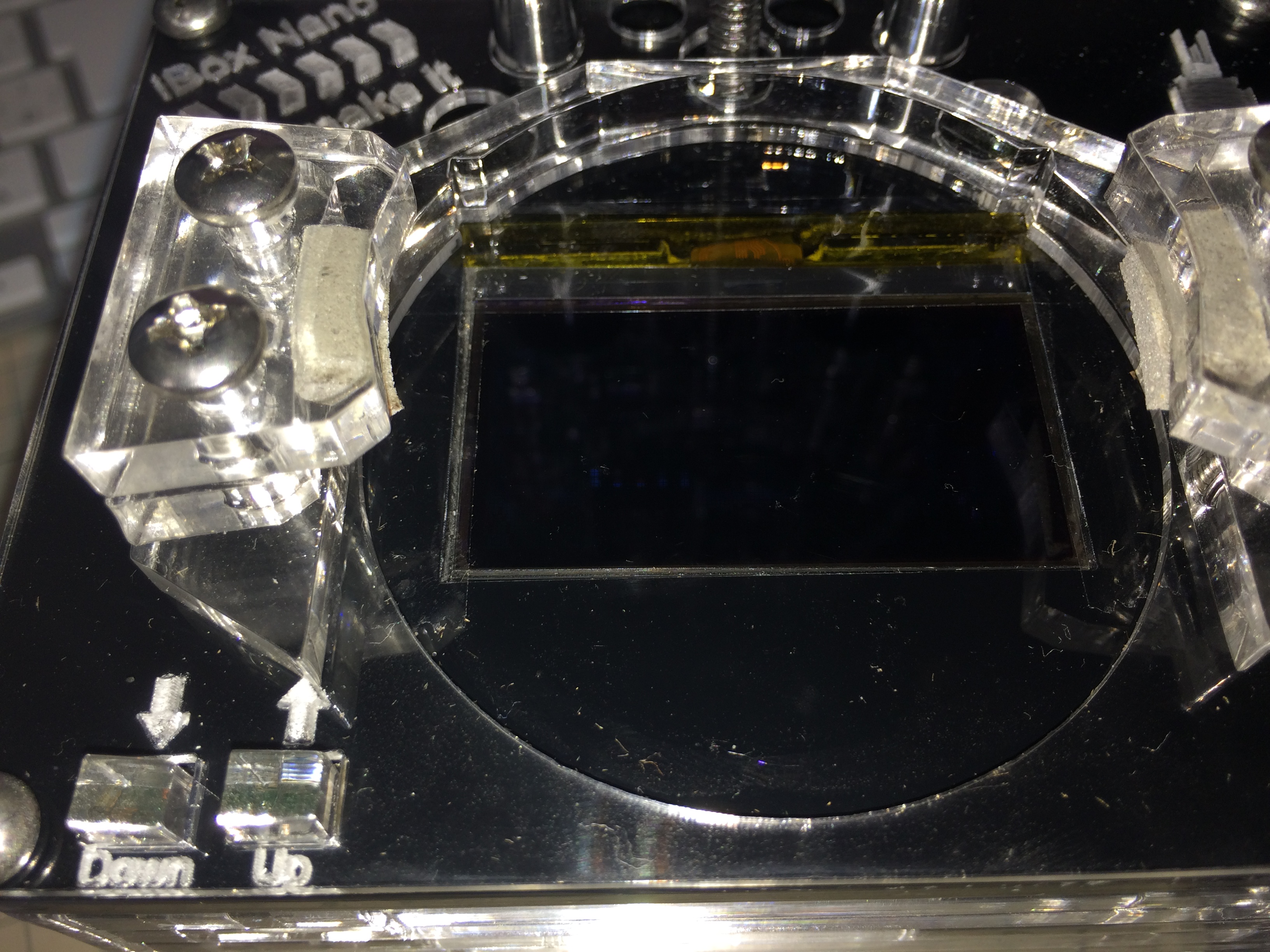

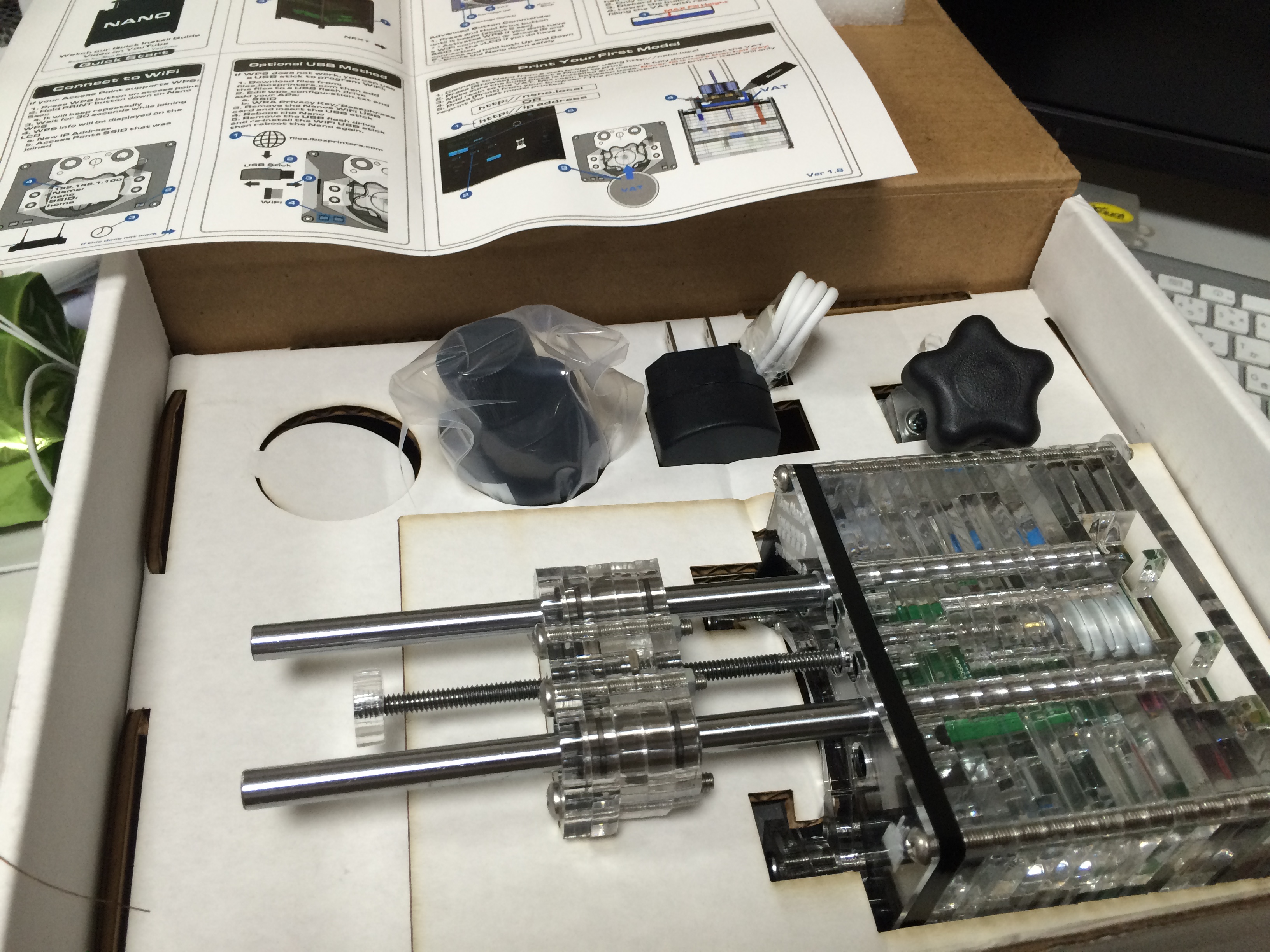

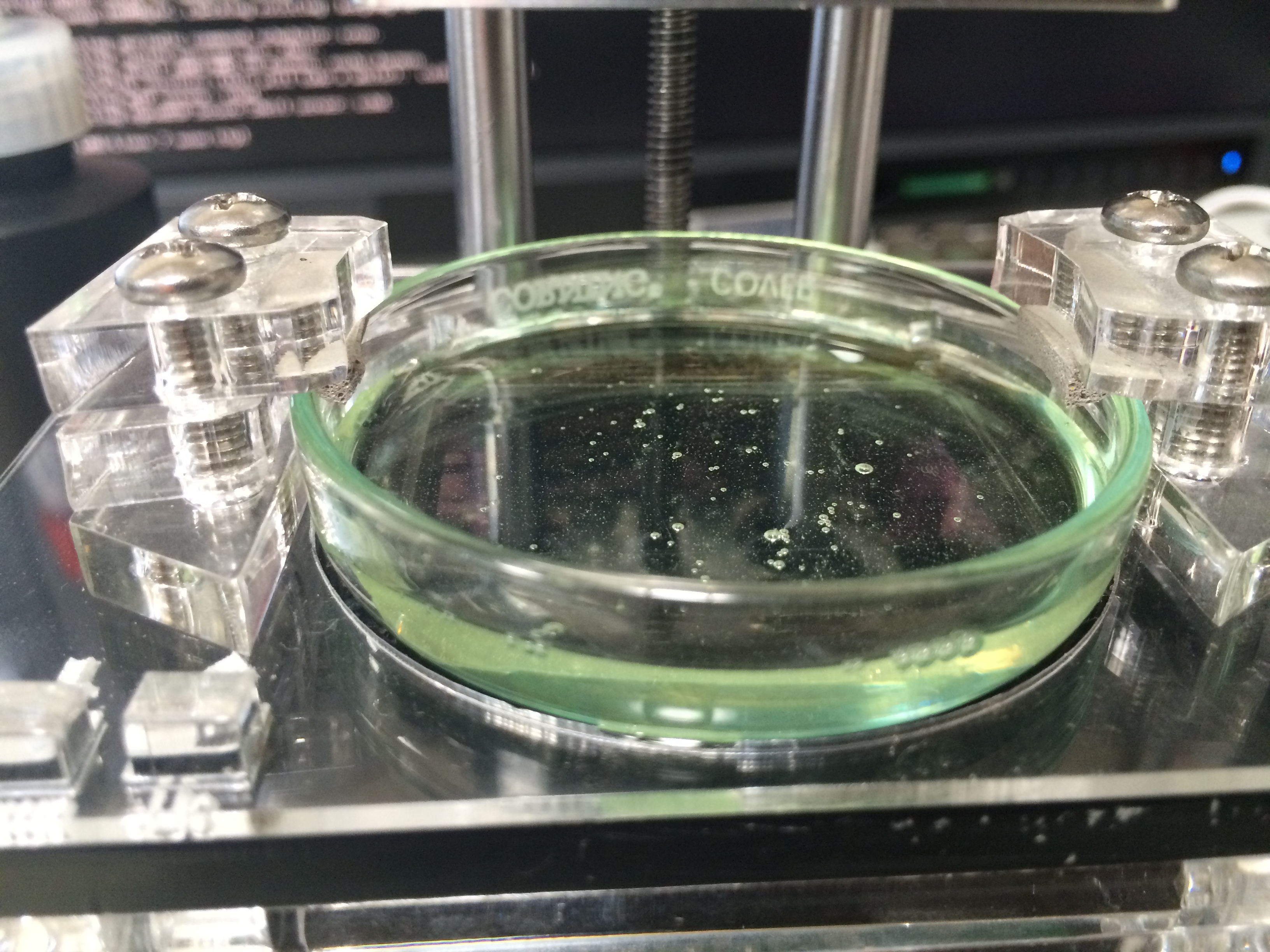

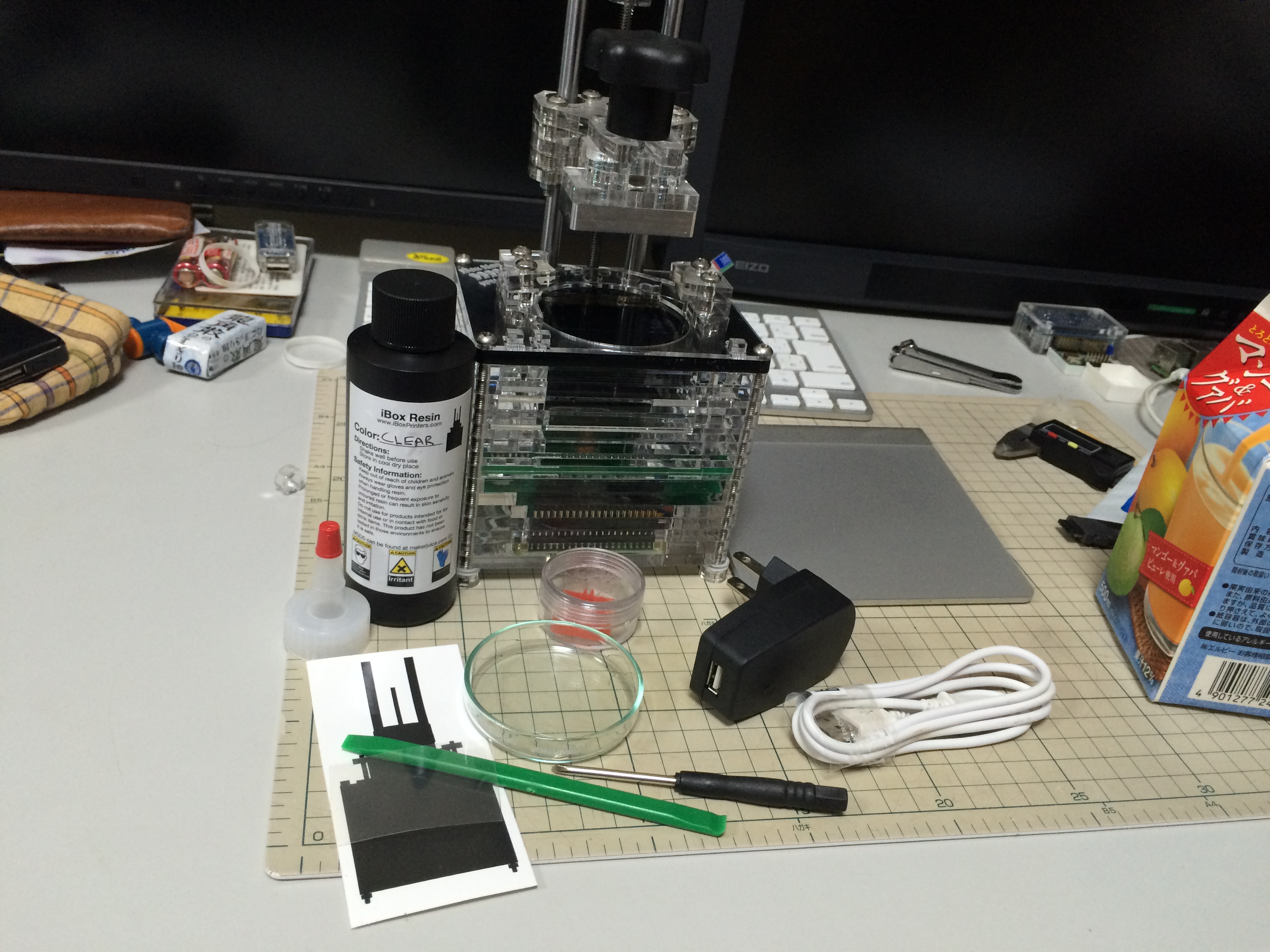

iBox Nanoクラッシュ？

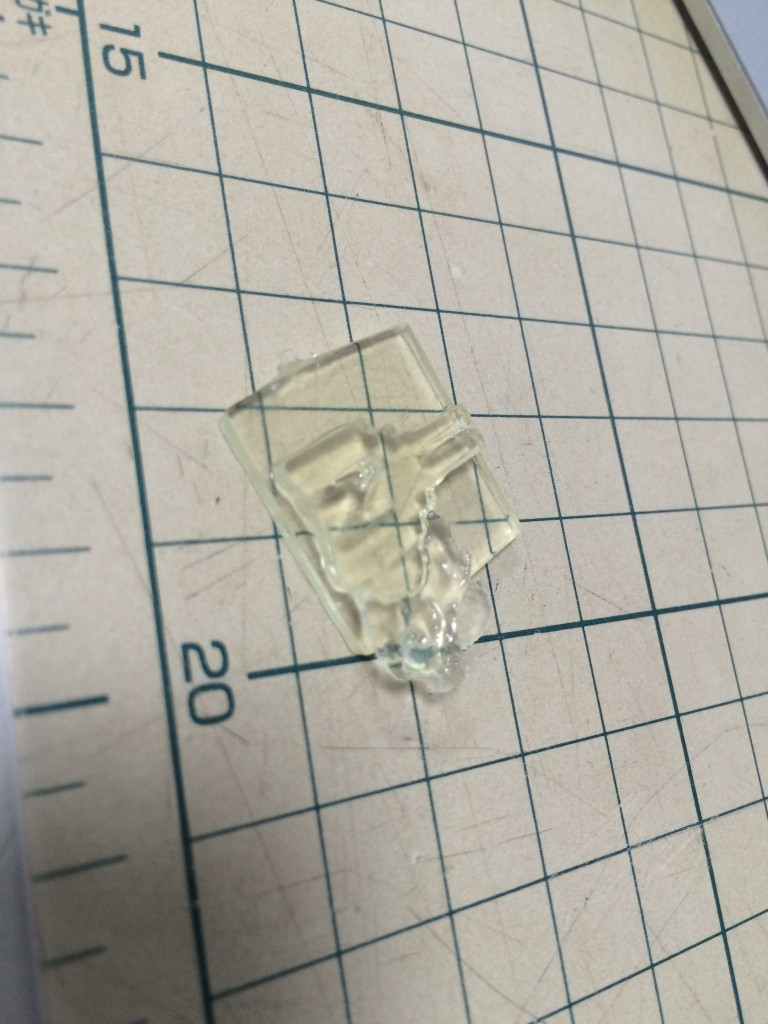

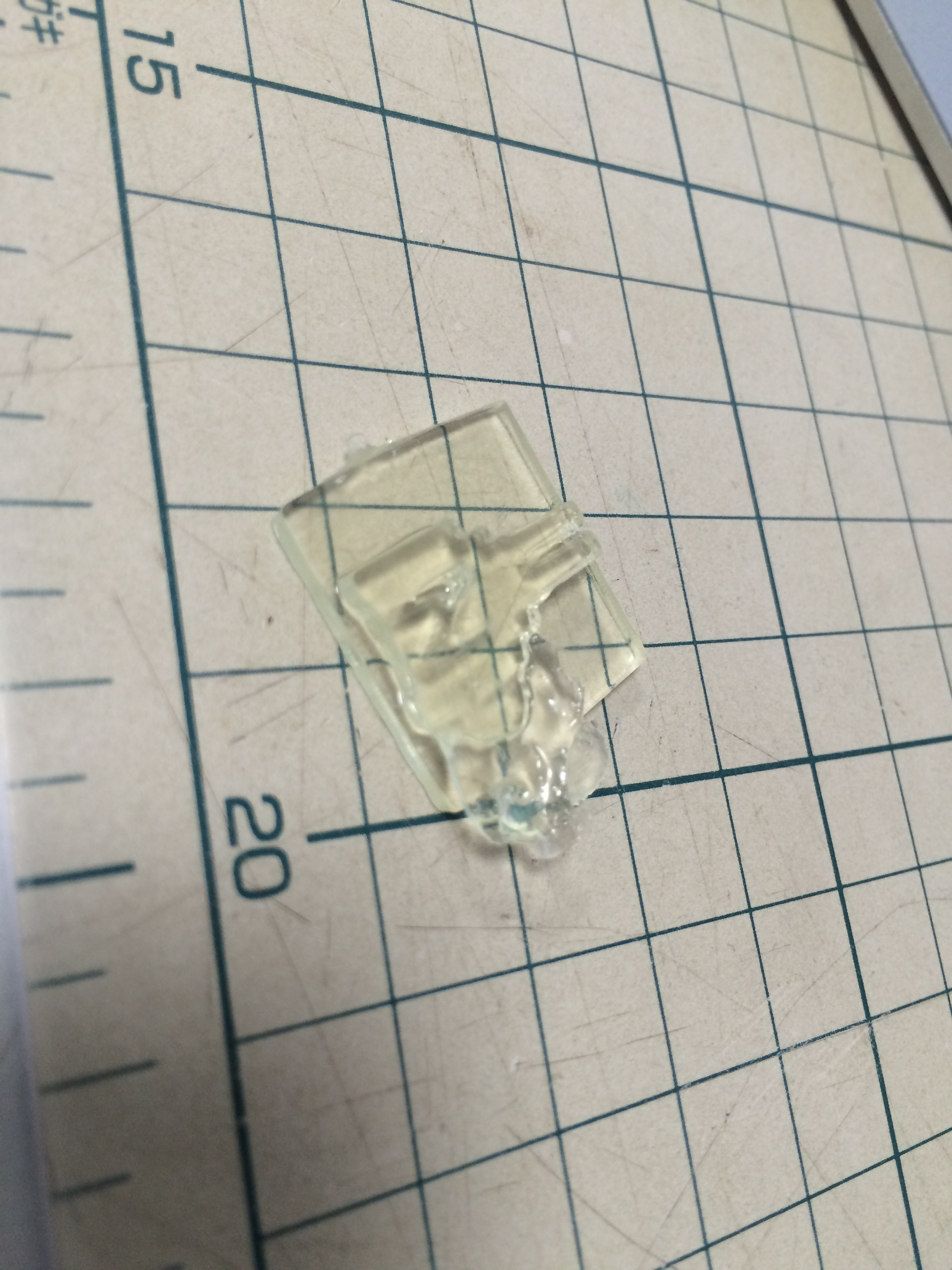

iBoxNanoでの自作データの流し込みが、STLファイルをslic3rでSVG化して入れ込むのがわかったので（ここに書いてあった。）、入れては出力していろいろと試行錯誤していていたのですが。。。

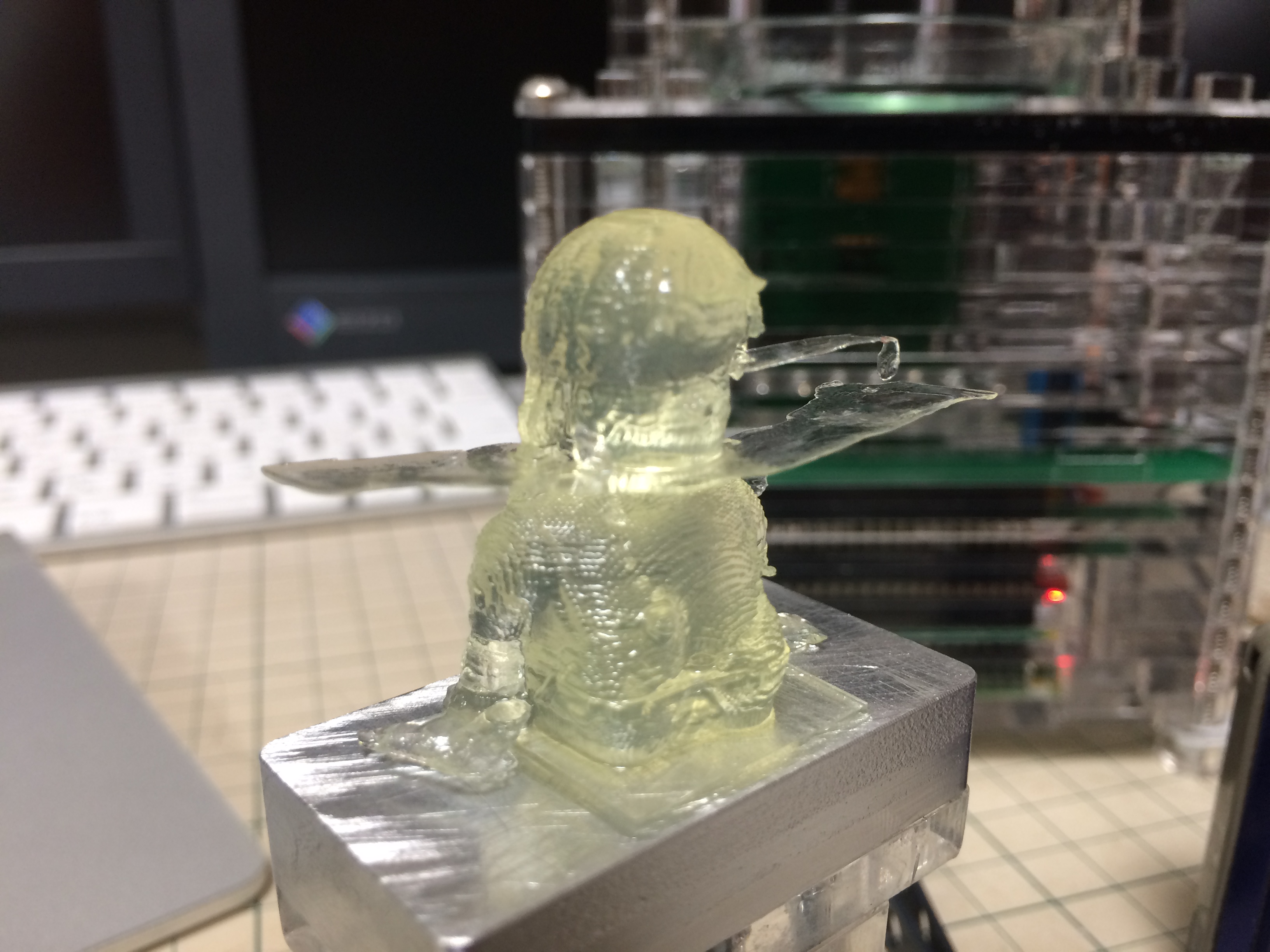

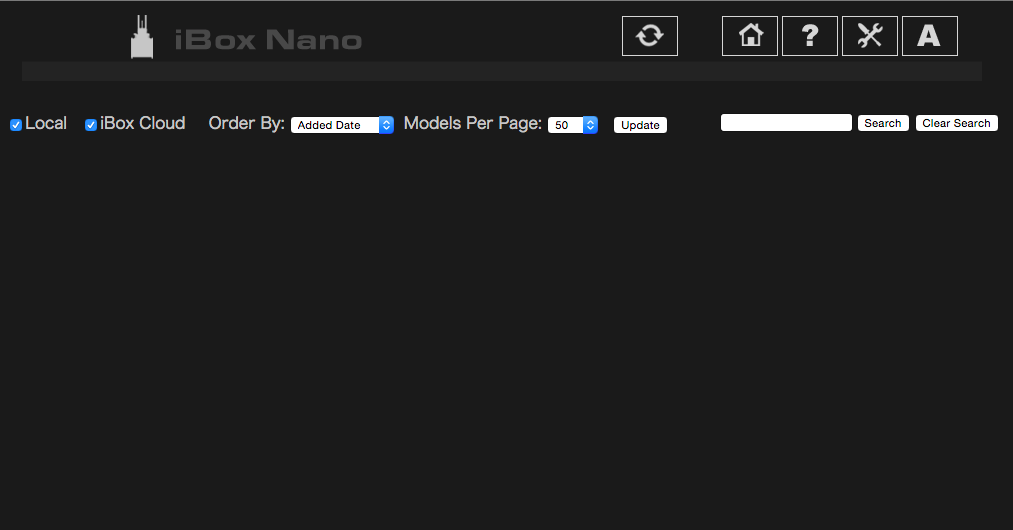

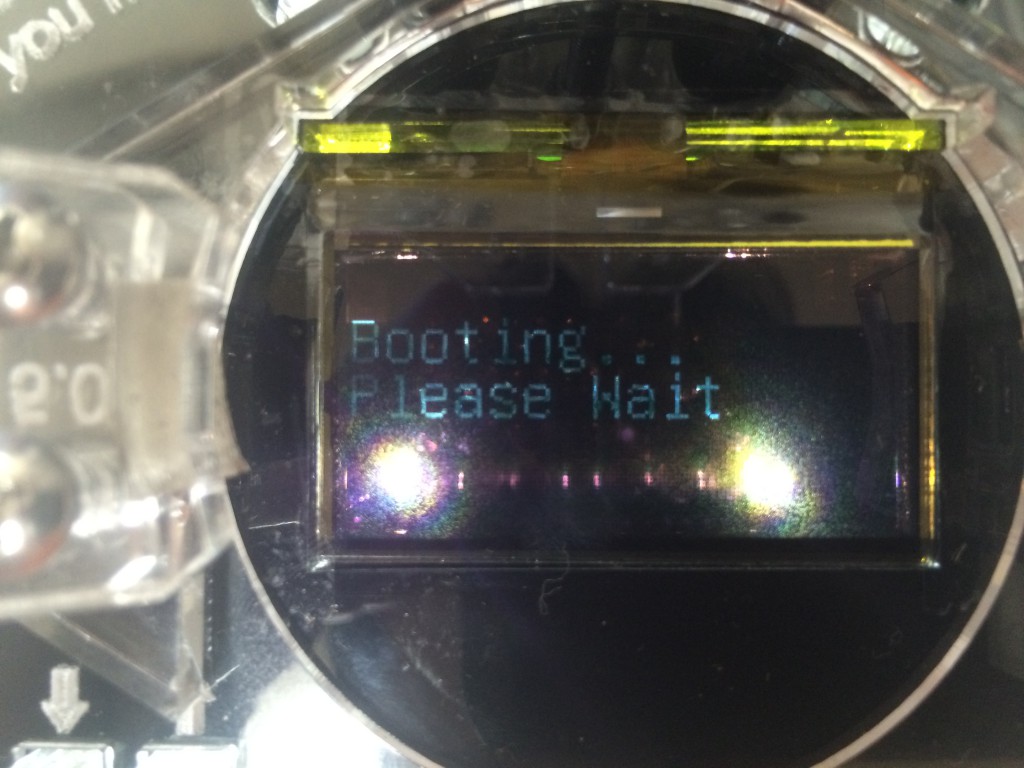

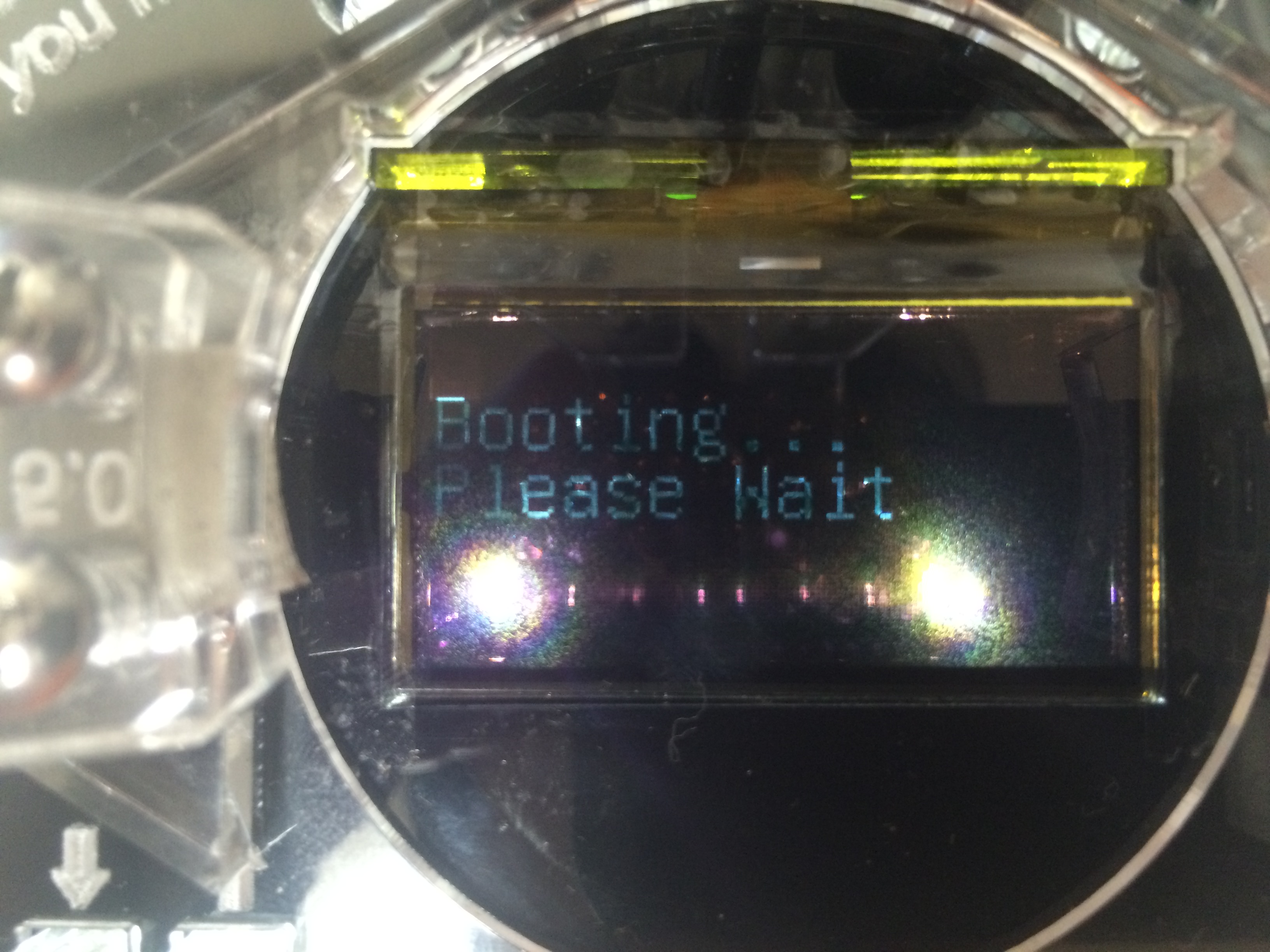

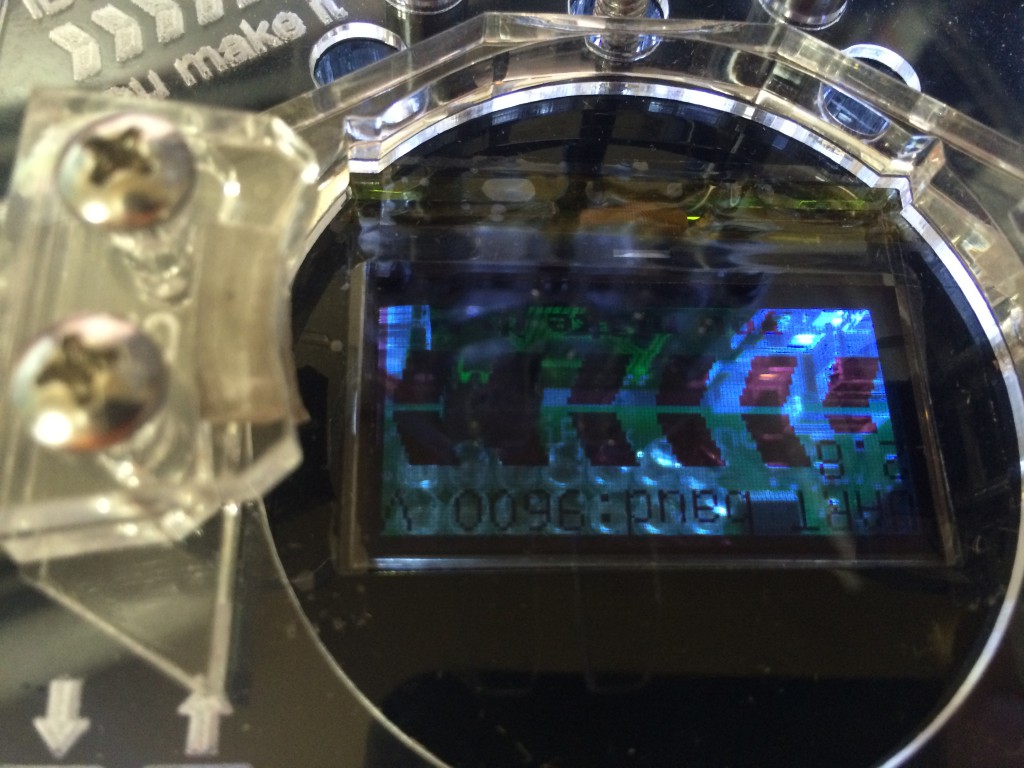

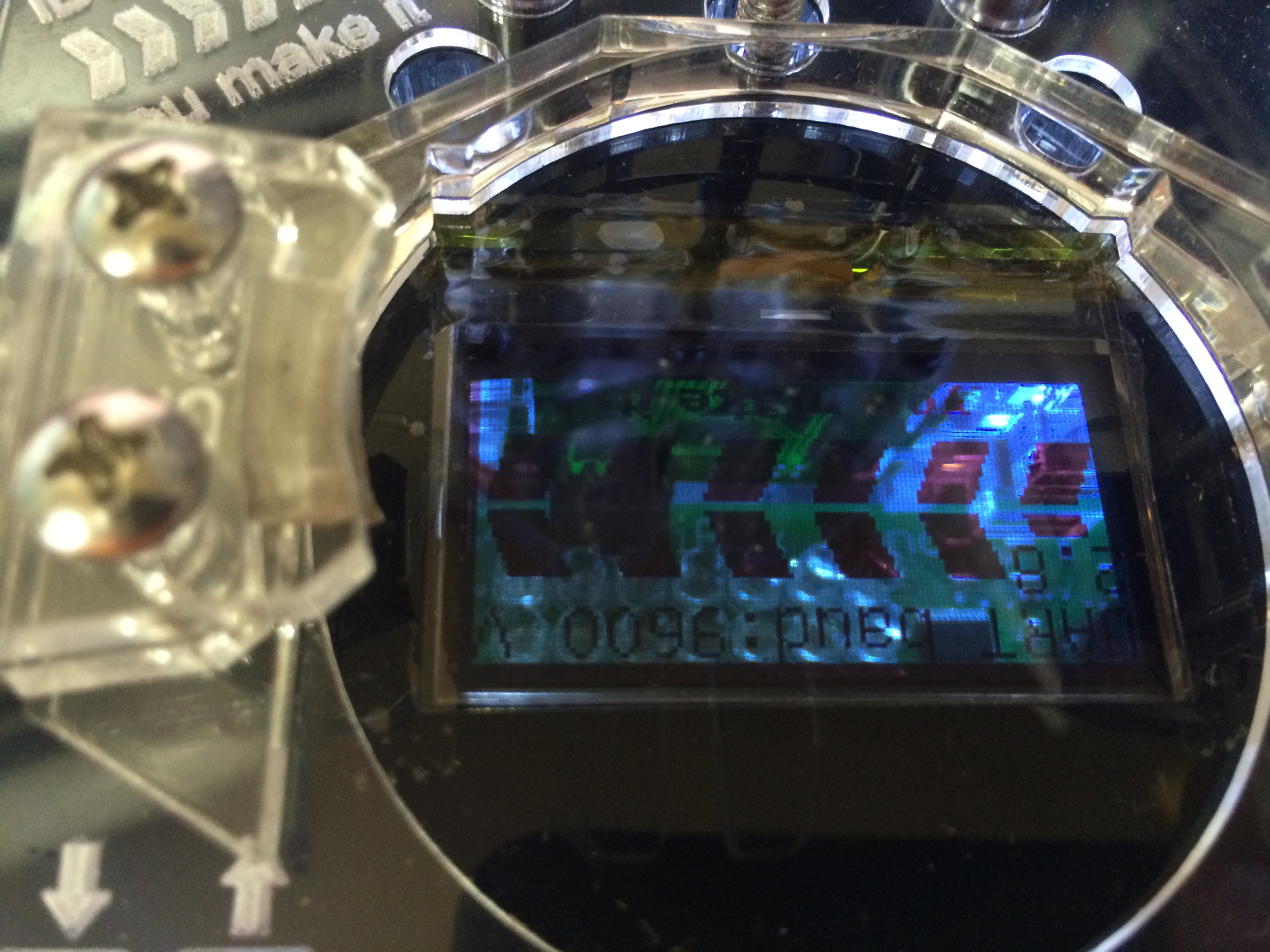

いらなくなったデータを削除したら、下記の画面を表示した後本体がREBOOTするようになってしまった。

Settings->Advanced screen 遷移でSYSLOGが取得できるので取って見たら、

util.pump() is deprecated. Use readableStream.pipe() instead.
util.pump() is deprecated. Use readableStream.pipe() instead.

/home/pi/ibox/ibp_browse.js:1632
					myList.models[nextThumbSlot].url = urlReturn; //urlArr[nextThumbSlot] = u
					                                 ^
TypeError: Cannot set property 'url' of undefined
    at /home/pi/ibox/ibp_browse.js:1632:39
    at Object.<anonymous> (/home/pi/node_modules/gcloud/lib/storage/file.js:692:5)
    at Object.immediate._onImmediate (timers.js:372:16)
    at processImmediate [as _immediateCallback] (timers.js:354:15)
util.pump() is deprecated. Use readableStream.pipe() instead.

/home/pi/ibox/ibp_browse.js:948
function loadLocal1(response, myBrowseList, isMgntLocal) {
                   ^
RangeError: Maximum call stack size exceeded

/home/pi/ibox/ibp_browse.js:948
function loadLocal1(response, myBrowseList, isMgntLocal) {
                   ^
RangeError: Maximum call stack size exceeded

/home/pi/ibox/ibp_browse.js:948
function loadLocal1(response, myBrowseList, isMgntLocal) {
                   ^
RangeError: Maximum call stack size exceeded

/home/pi/ibox/ibp_browse.js:948
function loadLocal1(response, myBrowseList, isMgntLocal) {
                   ^
RangeError: Maximum call stack size exceeded

/home/pi/ibox/ibp_browse.js:948
function loadLocal1(response, myBrowseList, isMgntLocal) {
                   ^
RangeError: Maximum call stack size exceeded
util.pump() is deprecated. Use readableStream.pipe() instead.

/home/pi/ibox/ibp_browse.js:948
function loadLocal1(response, myBrowseList, isMgntLocal) {
                   ^
RangeError: Maximum call stack size exceeded

/home/pi/ibox/ibp_browse.js:948
function loadLocal1(response, myBrowseList, isMgntLocal) {
                   ^
RangeError: Maximum call stack size exceeded

util.pump() is deprecated. Use readableStream.pipe() instead.

/home/pi/ibox/ibp_browse.js:1632

myList.models[nextThumbSlot].url = urlReturn; //urlArr[nextThumbSlot] = u

TypeError: Cannot set property 'url' of undefined

at /home/pi/ibox/ibp_browse.js:1632:39

at Object.<anonymous> (/home/pi/node_modules/gcloud/lib/storage/file.js:692:5)

at Object.immediate._onImmediate (timers.js:372:16)

at processImmediate [as _immediateCallback] (timers.js:354:15)

util.pump() is deprecated. Use readableStream.pipe() instead.

/home/pi/ibox/ibp_browse.js:948

function loadLocal1(response, myBrowseList, isMgntLocal) {
